| ハイライト: | Large filtration area & high dirt holding capacity,High temp pressure & corrosion resistant stainless steel structure,Fully customized specifications for industrial filtration |
||
|---|---|---|---|

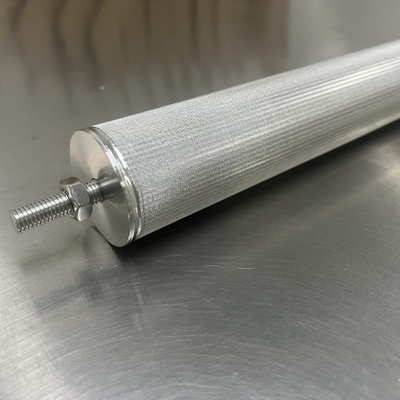

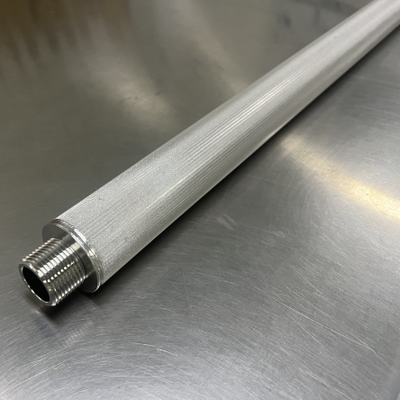

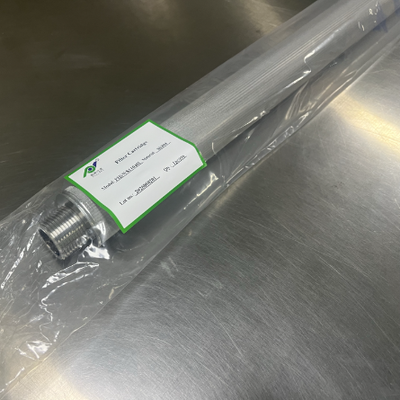

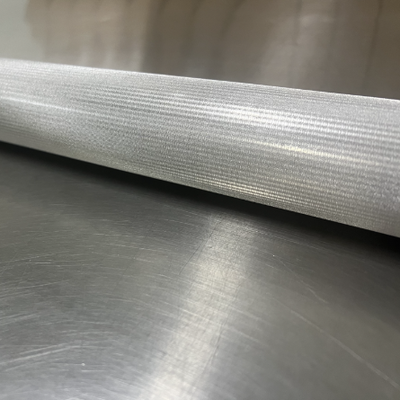

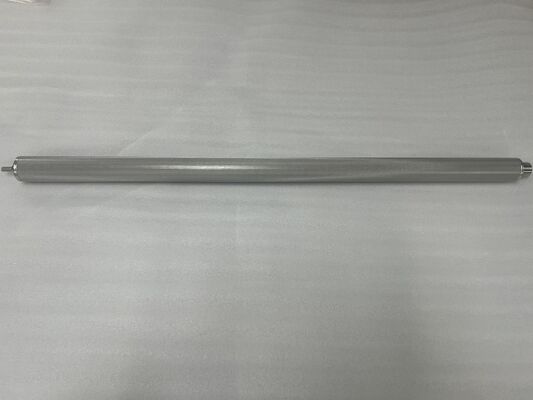

40" Length PHSW Series Stainless Steel Fiber Felt Pleated Filter Cartridge
The PHSF series stainless steel pleated filter cartridge is manufactured from stainless steel fiber felt formed into a pleated wave shape. This design provides a large filtration area, high dirt holding capacity, and excellent corrosion resistance, high pressure tolerance, and high temperature performance. Custom configurations available upon request.
Features and Benefits
Specifications
Core/Outer Guard
SUS 304/316L Stainless steel porous plate
Filter Medium
Upstream Support: 30 mesh or 40 mesh stainless steel wire mesh
Filter net: Required accuracy of stainless steel wire mesh
Downstream Support: 30 mesh or 40 mesh stainless steel wire mesh
End caps
SUS 304/316L Stainless steel
Max. operating differential pressure
5.0 bar
Max. operating temperature
480℃
Standard OD
Standard Length
Filter Area
65mm
Customized on request5 in. (127mm)
0.096 m²
10 in. (254mm)
0.19 m²
20 in. (508mm)
0.38 m²
30 in. (762mm)
0.57 m²
40 in. (1016mm)
0.76 m²
Company Profile
Shanghai Pullner Filtration Technology Co., Ltd.
Our company operates a domestic first-class physical and chemical laboratory equipped with mass spectrometer (ICP-MS), gas chromatography (GC-MS), liquid chromatography (LC-MS), scanning electron microscope (including EDS energy spectrum), particle counters, cartridge efficiency test bench (IFTS, France), membrane pore size distribution instrument, online particle detector, membrane test bench, permeability tester, and cartridge testing equipment. We can test and evaluate the performance of filter materials, cartridges, and filtration equipment, and also assist customers in analyzing challenging filtration problems on production lines.
