| ハイライト: | air filter,dust air removal,big diameter filter |
||
|---|---|---|---|

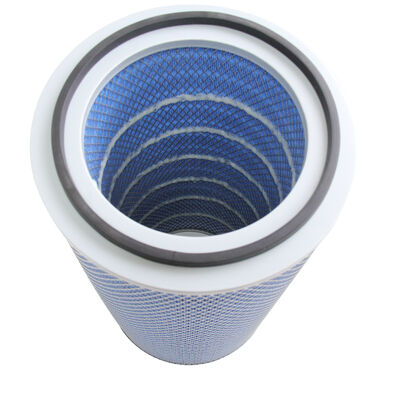

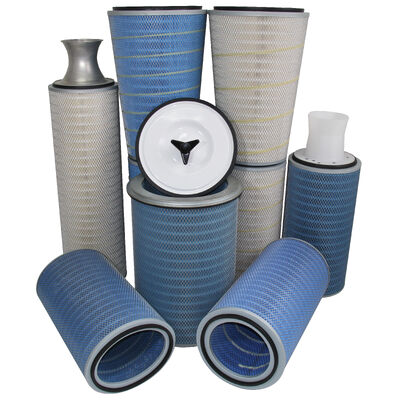

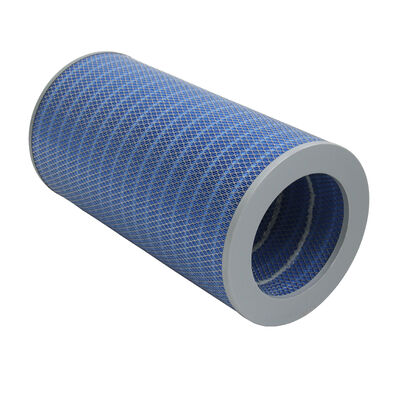

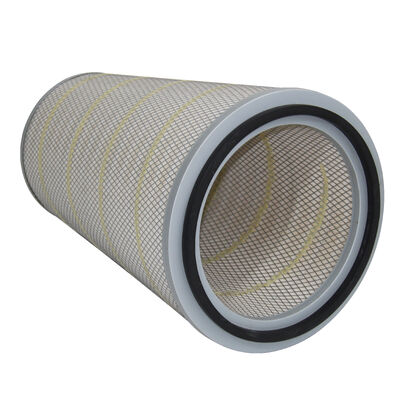

The PGS series filter cartridge is specially designed for powder conveying and batching systems. Made of polyester media with surface film coating and selected filtration ratings, it provides efficient pulse back-blow cleaning while maintaining excellent dust retention performance. The cartridge effectively prevents dust penetration, helping protect vacuum pumps and related equipment and ensuring stable system operation.
| Item | Specification |
|---|---|
| Dimensions | OD * ID * H 350*240*660mm |
| Filter Media | Film-coated polyester media |
| Inner Core | Galvanized carbon steel / Stainless steel |
| Outer Cage | Galvanized carbon steel / Stainless steel |
| End Caps | Galvanized carbon steel / Stainless steel |
| Gasket Material | Silicone rubber |
| Filtration Efficiency | Up to 99.99% |
| Recommended Operating Differential Pressure | ≤ 0.4 MPa |
| Maximum Operating Temperature | 150°C |
The PGS Series filter cartridge is specifically designed for pneumatic vacuum conveying systems, where efficient air-solid separation and reliable equipment protection are essential. With a pleated configuration providing a large effective filtration area, the cartridge offers high dust holding capacity, stable airflow, and low operating resistance.
The filter media is suitable for fine powder handling and enables effective particle retention during vacuum transfer processes. It helps prevent dust carryover and material loss while protecting downstream components such as vacuum pumps and conveying equipment. The robust construction, including reinforced inner support and metal end caps, ensures good mechanical strength and dimensional stability under negative-pressure operating conditions.
PTS Series filter cartridges are widely used in pharmaceutical, chemical, food, battery, and other powder processing industries where conveying cleanliness, process reliability, and equipment safety are critical.
Frequently Asked Questions
Q: What is the PGS series dust collector filter cartridge used for?
A: The PGS series dust collector filter cartridge is mainly used for industrial dust collection and air filtration. It is suitable for powder processing, mixing, grinding, cutting, welding, battery material production, pharmaceutical, chemical, food and other applications where fine dust needs to be captured efficiently.
Q: What filter media can you provide for dust collector filter cartridges?
A: We can provide different filter media according to working conditions, such as polyester, anti-static polyester, PTFE membrane polyester, nano flame-retardant anti-static media and carbon-based membrane media. The material can be selected based on dust type, air volume, temperature, humidity and safety requirements.
Q: Can the size of the dust filter cartridge be customized?
A: Yes, customized size is available. Please provide the outer diameter, inner diameter, length, end cap type, sealing type and installation method. If you have a sample or drawing, it will help us confirm the design more accurately.
Q: How do I choose the right dust collector filter cartridge?
A: To select the right filter cartridge, we need to know the dust type, particle size, air flow, working temperature, humidity, equipment model, installation size and whether anti-static or flame-retardant performance is required. Based on this information, we can recommend a suitable filter media and structure.
Q: Can your dust filter cartridge replace other brands?
A: Yes, we can provide replacement filter cartridges for many dust collector systems. Please send us the original filter cartridge model, size, photos or drawings. We will check the structure and recommend a compatible replacement.
Q: What is the filtration efficiency of the PGS series filter cartridge?
A: The filtration efficiency depends on the selected filter media and working conditions. For fine dust collection, we can provide high-efficiency media such as PTFE membrane, nano media or carbon-based membrane media to improve particle capture efficiency and reduce dust emission.
Q: Can the filter cartridge be used for conductive or explosive dust?
A: For conductive, flammable or explosive dust, anti-static or flame-retardant filter media is recommended. The final selection should also consider the whole dust collection system design, grounding, explosion protection and site safety requirements.
Q: How often should the dust collector filter cartridge be replaced?
A: The replacement cycle depends on dust concentration, air flow, cleaning frequency, pressure drop and operating time. When the pressure drop remains high after pulse cleaning, or the dust emission increases, the filter cartridge should be checked and replaced if necessary.
Q: Can you provide samples for testing?
A: Yes, samples can be provided for testing. Since dust characteristics and equipment conditions are different, sample testing is a good way to confirm filtration performance, pressure drop and service life before bulk order.
Q: What information should I provide for a quotation?
A: Please provide the filter cartridge size, material requirement, end cap type, sealing type, quantity, application, dust type and working conditions. If available, photos, drawings or the original filter model will help us quote more accurately.
