| ハイライト: | 80mm Diameter Pleated Filter Cartridge,120L/Min Flow Capacity Membrane Filter Cartridge,0.05μm Filtration Rating 83 Series Filter Cartridge |
||
|---|---|---|---|

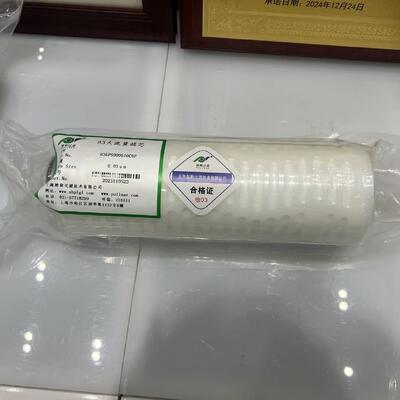

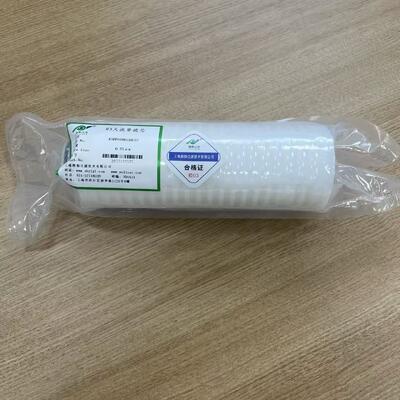

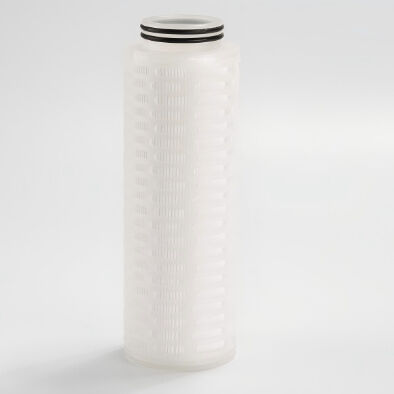

The 83 Series pleated filter cartridge is specifically engineered for wet process filtration in FPD (flat-panel display) manufacturing applications. Featuring an expanded filtration area and enhanced flow capacity, this cartridge delivers optimal performance for 5-6 generation production lines with flow requirements up to 120L/Min.
|
Filter Media
|
PFL:PTFE(Hydrophobicity) PFLH:PTFE(Hydrophilic)
EPS:PES HPPV:PP |
|
Cage/Core/End Caps
|
Polypropylene (PP)
|
|
Seal Material
|
EPDM, Silicone, V
|
|
Maximum Operating Temperature
|
80℃
|
|
Maximum Operating Difference Pressure
|
4bar/21℃
2.4bar/80℃ |
|
Dissolution Content
|
Less than 30mg/10"
Less than 0.25EU/ml/10" |
| Series | Micron Rating | Length | End Cap Type | Seal Material |
|---|---|---|---|---|
| 83 | PFL: 0.2μm, 0.5μm, 1.0μm, 3.0μm, 5.0μm, 10μm | 10" | C5=222/Flat C6=226/Flat |
E=EPDM S=Silicone V=V |
| PFLH: 0.2μm, 0.5μm, 1.0μm, 3.0μm, 5.0μm, 10μm | ||||
| EPS: 0.05μm, 0.1μm, 0.22μm, 0.45μm, 0.65μm, 1.2μm, 20μm, 40μm, 70μm, 90μm | ||||
| HPPV: 0.5μm, 1.0μm, 1.5μm, 3.0μm, 5.0μm, 10μm |
Shanghai Pullner Filtration Technology Co., LTD.
Established: 2013
Specialty: PP pleated filter cartridges, melt-blown filter cartridges, string wound filter cartridges, stainless steel filter cartridges, and more.
Beijing, Guangzhou, Fujian, Sichuan, Guangxi, Yunnan, Xinjiang, Inner Mongolia, Shaanxi, Northeast China
UAE (Dubai), Malaysia (Kuala Lumpur), Russia (Moscow)
