商品の詳細:
|
| ハイライト: | 60 inches Condensate Polishing Filter,Polypropylene Media High Flow Filter Cartridge,High Flow Rate PHFZ Filter Cartridge |
||
|---|---|---|---|

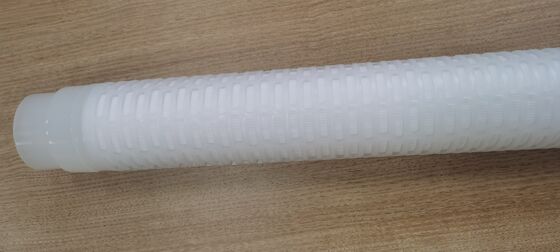

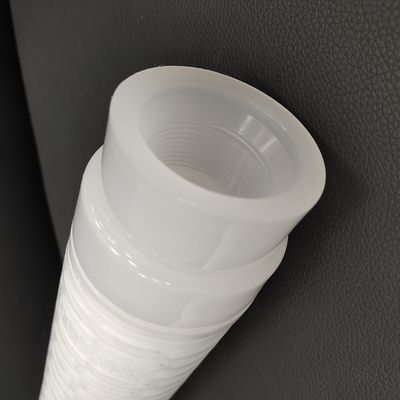

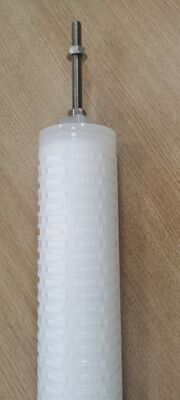

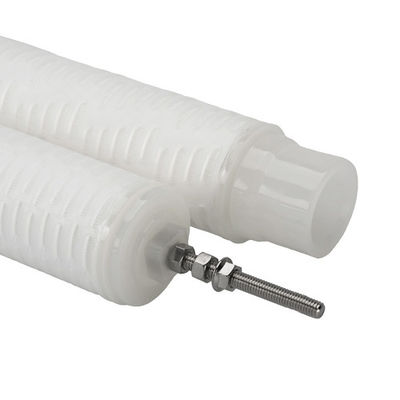

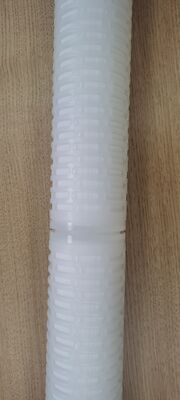

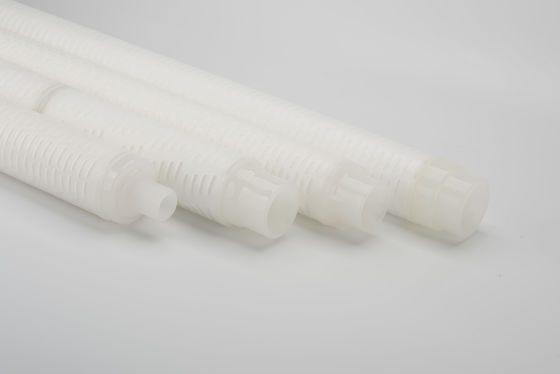

The High Flow Pleated PHZ Filter Cartridge is engineered for high-volume water filtration applications. Utilizing deep-pleated polypropylene (PP) or glass fiber media, this cartridge delivers exceptional high flow rates, low pressure drop, and extended service life.
Featuring 69Φ large diameter design with no center core and dedicated inside-to-outside flow direction, contaminants and particles are efficiently retained inside the cartridge. This design enhances maintenance efficiency and extends filtration cycles while reducing the number of cartridges and housing size required, significantly lowering capital investment, installation space, and labor costs.
| Series | Media | Micron | Length | Structure | Connection Thread | End-thread |
|---|---|---|---|---|---|---|
| PHFZ | PP=polypropylene |
0100=1.0um 0400=4.0um 1000=10um |
60=60" 70=70" |
I= 7parts(Φ69) II=40"+30"(Φ69) III=20"+20"+20"+10"(Φ69) |
Z1=1 1/2"-12 Z2=M33*1.5 |
W1=M8 W22=M10 W3=M6 W4=3/8 |
