| ハイライト: | Ultra-High Flow Capsule Filter,High-Speed Coating Filter Cartridge,7 Wound Filter Cores PRS Series Filter |
||
|---|---|---|---|

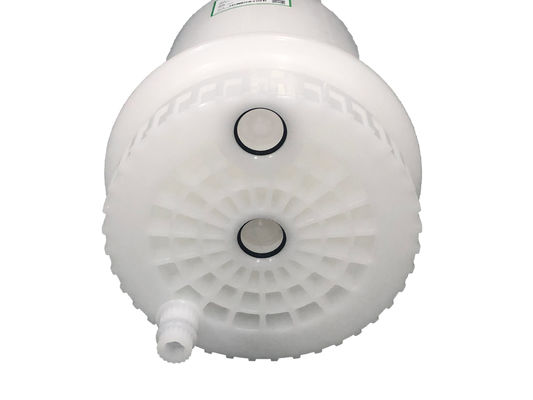

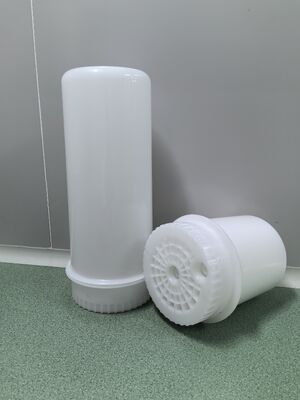

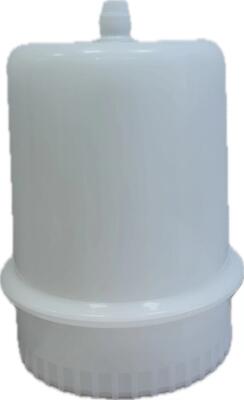

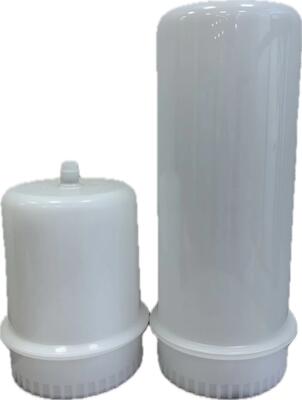

The PRS series integrated filter cartridge is engineered for ultra-high flow applications, making it ideal for high-speed coating production lines. This advanced design incorporates seven wound filter cores that significantly extend service life and reduce replacement frequency, meeting the rigorous demands of high-speed coating processes. The bottom features a specialized drain outlet for efficient liquid recovery and reuse.
| Model | PRS |
|---|---|
| Length | 378mm |
| OD | 250mm |
| Media Material | PP |
| Material of Outer Core | PP |
| Thread type of the vent valve | 1/4" NPT |
| Design Pressure | 0.8Mpa |
| Maximum Operating Pressure | 0.5Mpa@20℃ |
| Maximum Operating Temperature | 80℃ |
PRS --10-- 100H-- E
| Series | Length | Micron | O-ring | |
|---|---|---|---|---|
| PRS | 10=10" | 0500=5μm 1000=10μm 1500=15μm 3000=30μm 5000=50μm 7500=75μm | 100H=100μm 120H=120μm 150H=150μm 200H=200μm 250H=250μm 300H=300μm | E=EPDM |
| Product Name | Daily Production Capacity |
|---|---|
| High Flow Filter Cartridge | 500 pcs/day |
| Condensate Filter Element | 200 pcs/day |
| Microporous Pleated Filter Cartridge | 200 pcs/day |
| Membrane Filter Cartridge | 100 pcs/day |
