商品の詳細:
|
| ハイライト: | Ultra-fine Glass Fiber Filter Cartridge,High Flow Gas Filtration Cartridge,>90% Dust Holding Filter Cartridge |
||
|---|---|---|---|
| Diameter: | 69mm | Length: | 10" |
|---|---|---|---|
| Filter Medium: | PP | Filtration Rating: | 0.um-5um |
| MOQ: | 1 Piece | Delivery Time: | 1 Month |
| Sealing Material: | Silicone/Viton/PEP/EPDM | Max. Operating Temperature: | 80℃ |
| Max. Operating Different Pressure: | 4bar/21℃ | Removal Rating: | 90% |
| Highlight: |
0.3μm Gas Filter Cartridge,ISO9001 Gas Filter Cartridge,GFH Glass Fiber Filter Cartridge |
||

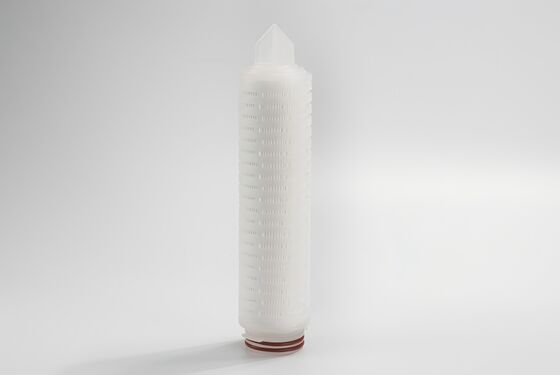

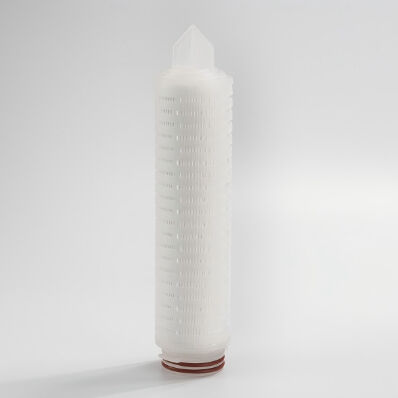

GFH High Dirt Content Gas Filter Glass Fiber Membrane Filter Cartridge
The GFH series filter cartridge is made of ultra-fine Glass fiber material with dust holding space more than 90%, which is especially suitable for gas filtration. The unique ability of particle retention ensures gas particle retention efficiency, is suitable for gas particle removal filtration.
Material Construction
| Filter Material | Ultrafine glass fiber |
| Support/Drainage | Polypropylene (PP) |
| Cage/Core/End Caps | Core:SS304 or PP |
| Seal Material | EPDM, Silicone, Viton, FEP |
Performance
| Filtration rating | 0.3μm, 0.5μm, 1μm, 3μm, 5μm |
| Maximum Operating Temperature | 50℃(6 Months) |
| Maximum Operating Differential Pressure |
4bar/21℃ 2.4bar/80℃ |
Biological Safety
| Every 10 inches of dissolved matter | ＜30mg |
| Endotoxin | 0.25EU/ml |
Ordering Information
GFH 0002 10 C1 E
| Series | Micron | Length | End Cap Type | Seal Material | ||||
| GFH | 0030 | =0.3μm | 05 | =5" | C1 | =226/Spear | E | =EPDM |
| 0050 | =0.5μm | 10 | =10" | C3 | =222/Spear | S | =Silicone | |
| 0100 | =1.0μm | 20 | =20" | C5 | =222/Flat | V | =Viton | |
| 0300 | =3.0μm | 30 | =30" | C6 | =226/Flat | P | =FEP | |
| 0500 | =5.0μm | 40 | =40" | C9 | =DOE | |||
